Yanton T630

YANTON T-630

Características

Alcance de comunicación

Medio ambiente

Nombre de la marca

YANTON

Canal de almacenamiento

16 canales

Número de modelo

T-630

Lugar de origen

Fujian, China

Rango de frecuencia

136-174MHZ/400-480MHZ

Nombre

T-630

Calidad

Superior

Potencia de salida

10W

Color

NEGRO

Voltaje DE TRABAJO

7,4 V

Capacidad de la batería

Batería de iones de litio de 2200mAh

Temperatura DE TRABAJO

-25 °C a + 55 °C

Peso (incluyendo antena y batería)

232g

Programa de software para PC

Permitido

Certificación

CE

PRODUCTOS RELACIONADOS

Yanton TX8 Plus

Yanton T-650UV

Yanton T-890

Yanton DM-900

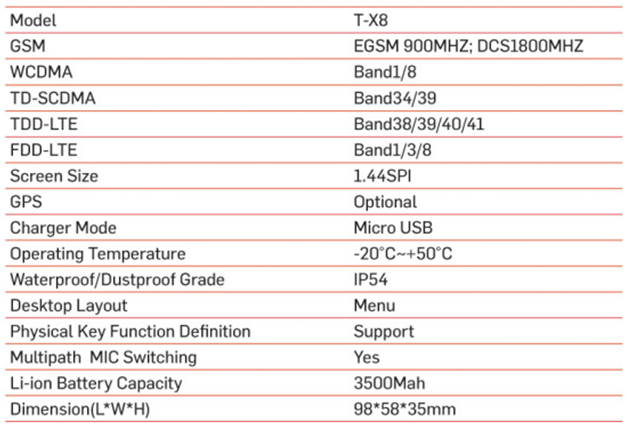

Yanton TX8 Plus

YANTON TX8 Plus

Características

PRODUCTOS RELACIONADOS

Yanton T630

Yanton T-650UV

Yanton T-890

Yanton DM-900

Yanton T-650UV

YANTON T-650UV

Características

GENERAL

Especificación	Valor
Frequency Range	136–174 MHz / 400–480 MHz
Frequency Range	136–174 MHz / 450–520 MHz
Operating Temperature	-25°C ~ +55°C
Frequency Spacing	25 / 12.5 KHz
Frequency Stability	±2.5 ppm
Channel Capacity	999 Group
Working Voltage	7.4 V
Battery Capacity	2800 mAh Li-ion battery
Antenna Impedance	50 Ω
Dimension	112 mm × 60 mm × 40 mm
Weight	232 g (Include Antenna & Battery)

TRANSMITTER

Especificación	Valor
Output Power	10W / 5W
Modulation Mode	16K0F3E / 8K0F3E
Modulation Limited	±5 KHz / ±2.5 KHz
Audio Distortion	≤5%
Residual Frequency Modulation	-45 dB / -40 dB
Adjacent Channel Power	-70 dB / -60 dB
Spurious and Harmonic Wave	-36 dBm < 1 GHz / -30 dBm > 1 GHz

RECEIVER

Especificación	Valor
Receiving Sensitivity	<0.18 μV / 0.22 μV
Adjacent Channels Selectivity	>70 dB / 60 dB
Intermediation	>60 dB
Spurious Response	>70 dB
SNR	>50 / 45 dB
Audio Output Power	1 W
Audio Distortion	≤5%

PRODUCTOS RELACIONADOS

Yanton T630

Yanton TX8 Plus

Yanton T-890

Yanton DM-900

Yanton T-890

YANTON T-890

Características

GENERAL

Especificación	Valor
Frequency Range	VHF: 136–174 MHz or 220–260 MHz
	UHF: 400–480 MHz or 450–520 MHz
Operating Temperature	-20°C to +55°C
Frequency Combination	Please lock frequency synthesize
Frequency Stability	±2.5 ppm
Memory Channel	2 × 250
Working Voltage	7.4 V
Antenna Impedance	50 Ω
Operating Mode	Simplex of co-frequency or alien
Dimensions	126 × 45 × 35 mm (without antenna)
Weight	260 g

TRANSMITTER

Especificación	Valor
RF Power	10 W
Modulate Mode	F3E
Max. Freq. Deviation	≤5 kHz
Remain Wave Radiation	≤-60 dB
Transmitting Current	≤1000 mA

RECEIVER

Especificación	Valor
Sensitivity	<0.20 μV (12 dB SINAD)
Squelch Sensitivity	<0.20 μV
Intermodulation Attenuation	50 dB
Audio Power Output	500 mW
Receiving Current	≤100 mA
Squelch Standby	20 mA
Audio Response	±1 dB ~ -3 dB
Rated Audio Distortion	≤3% (Type)

PRODUCTOS RELACIONADOS

Yanton T630

Yanton TX8 Plus

Yanton T-650UV

Yanton DM-900

YANTON DM-900

Características

GENERAL

Especificación	Valor
Frequency Range	VHF: 136–174 MHz
	UHF: 350–390 MHz
	UHF: 400–470 MHz
	UHF: 450–520 MHz
Channel Capacity	32
Channel Spacing	12.5 kHz / 25 kHz / 20 kHz
Frequency Stability	2.5 PPM
Operating Temperature	-25°C ~ +55°C
Antenna Impedance	50 Ω*
Operating Voltage	7.4 V
Dimension (H × W × D)	126 × 53 × 34 mm
Weight	300 g (with antenna & battery)
Zone Capacity	16 (each with a maximum of 16 channel)
Battery Life	(5-5-90 Duty Cycle, High TX power) High-capacity 2800 mAh Li-ion Battery
Analog Battery Life	Above 10.5 hours
Digital Battery Life	Above 14 hours
LCD Display	1.8 TFT

TRANSMITTER

Especificación	Valor
RF Power (H/L)	UHF: 4 W / 1 W
	VHF: 5 W / 1 W
Modulation Type	16K0F3E / 8K0F3E
Modulation Limiting	5 kHz / 4 kHz / 2.5 kHz
EM Distortion	<5%
Residual FM	-45 dB / -40 dB
Adjacent Channel Power	-70 dB / -60 dB
Spurious and Harmonics	< -36 dBm
Audio Distortion	<3%
Conducted/Radiated Emission	-36 dBm <1 GHz / 30 dBm >1 GHz*

RECEIVER

Especificación	Valor
Sensitivity (Analog)	0.22 μV / 0.25 μV
Adjacent Channel Selectivity	70 dB / 60 dB
Sensitivity (Digital)	0.22 μV / BER 5%
Rated Audio Distortion	<3%
Intermediation Reject Ratio	65 dB
Spurious Response Reject Ratio	70 dB
S/N	45 dB / 40 dB
Rated Audio Power Output	1.5 W
Audio Response	+1 ~ -3 dB
Conducted Spurious Emission	< -57 dBm
Intermodulation TIA-603 ETSI	≥70 dB @ 12.5 / 20 / 25 kHz*
Selectivity TIA-603 ETSI	≥60 dB @ 12.5 kHz / 70 dB @ 20 & 25 kHz*

PRODUCTOS RELACIONADOS

Yanton T630

Yanton TX8 Plus

Yanton T-650UV

Yanton T-890

Yanton TM-7700

YANTON TM-7700

Características

GENERAL

Tipo	Parámetro	Especificación
Operator System	—	Linux
RF Parameter	LTE/4G	Band: B1/B2/B3/B4/B5/B7/B8/B12/ B18/B19/B20/B26/B28/B34/B38/ B39/B40/B41
RF Parameter	WCDMA	Band 1: 2100M; Band 2: 1900M; Band 5: 850M; Band 8: 900M
RF Parameter	GSM	GSM/GPRS: 850/900/1800/1900MHz
RF Parameter	Receiving Sensitivity — LTE/4G	≤ -100 dBm
RF Parameter	Receiving Sensitivity — WCDMA 900	≤ -110 dBm
RF Parameter	Receiving Sensitivity — WCDMA 2100	≤ -110 dBm
RF Parameter	Receiving Sensitivity — GSM	GSM850/900/1800/1900: ≤ -109 dBm
GPS	GPS	GPS Positioning, Support A-GPS function
GPS	Sensitivity / frecuencias	GPS L1 Band: 1.57542 GHz
GPS	GLONASS	GLONASS Band: 1597.5–1605.8 MHz
GPS	BeiDou	BeiDou: 1559.05–1563.8 MHz
GPS	Sensitivity	Catch: -144 dBm, Track: -159 dBm
GPS	GSM CS	UL 9.6 kbps / DL 9.6 kbps
GPS	GNSS current	100 mA (GSM/CDMA/UMTS/LTE)
Technology Standard	Data Speed Rate — EDGE	Multi-slot Class 12
Technology Standard	Data Speed Rate — WCDMA CS	UL 64 kbps / DL 64 kbps
Technology Standard	Data Speed Rate — WCDMA PS	UL 384 kbps / DL 384 kbps
Technology Standard	Protocol	HSDPA/WCDMA/EDGE/GPRS/GSM
Basic Information	Working Current	Require 7.4V–240V Power Supply (Notice that 5V Power Band NOT work)
Basic Information	Working Temperature	-20~50°C
Basic Information	Display	2.8 inch Color display
Basic Information	Dimension	153mm (L) × 78mm (W) × 45mm (H)
Basic Information	Weight	570g
Basic Information	SIM card type	Normal SIM card

PRODUCTOS RELACIONADOS

Yanton T630

Yanton TX8 Plus

Yanton T-650UV

Yanton T-890

Yanton T-650

YANTON T-650

Características

GENERAL

Parámetro	Especificación
Frequency Range	VHF: 136–174 MHz
	UHF: 400–480 MHz / 450–520 MHz
Operating Temperature	-25 °C ~ +55 °C
Frequency Spacing	25 / 12.5 kHz
Frequency Stability	±2.5 ppm
Channel Capacity	16 Group
Working Voltage	7.4 V
Battery Capacity	2800 mAh Li-ion battery
Antenna Impedance	50 Ω
Dimension	112 mm × 60 mm × 40 mm
Weight	232 g (including antenna & battery)

TRANSMITTER

Parámetro	Especificación
Output Power	10 W / 5 W
Modulation Mode	16K0F3E / 8K0F3E
Modulation Limited	±5 kHz / ±2.5 kHz
Audio Distortion	≤5%
Residual Frequency Modulation	-45 dB / -40 dB
Adjacent Channel Power	-70 dB / -60 dB
Spurious and Harmonic Wave	-36 dBm @ 1 GHz / -30 dBm @ 1 GHz

RECEIVER

Parámetro	Especificación
Receiving Sensitivity	≤0.18 μV / 0.22 μV
Adjacent Channels Selectivity	≥70 dB / 60 dB
Intermediation	≥60 dB
Spurious Response	≥70 dB
SNR	≥50 / 45 dB
Audio Output Power	1 W
Audio Distortion	≤5%

PRODUCTOS RELACIONADOS

Yanton T630

Yanton TX8 Plus

Yanton T-650UV

Yanton T-890

Yanton DR-9000

YANTON DR-9000

Características

GENERAL

Parámetro	Especificación
Frequency	136–174 MHz / 400–480 MHz
RF Output	25 W
Channels Capacity	16
Weight	14.5 kg
Digital Protocol	ETSI-TS102 361-1, -2, -3
Operating Voltage	13.6 V DC ±20%
AC Power	AC 100–250 V, 50/60 Hz
Operating Temperature	-20 °C ~ +60 °C
Dimension	483 × 309 × 133 cm*

TRANSMITTER

Parámetro	Especificación
Channel Space	12.5 kHz / 25 kHz
Intermodulation	±2.5 kHz @ 12.5 kHz / ±5.0 kHz @ 25 kHz
Hum and Noise	-40 dB @ 12.5 kHz / -45 dB @ 25 kHz
Spurious Response	-36 dB < 1 GHz / -30 dBm > 1 GHz
Adjacent Channel Selectivity	-60 dB @ 12.5 kHz / -70 dB @ 25 kHz
Audio Distortion	≤3%
Digital Sensitivity	12.5 kHz 7k60FXD / 12.5 kHz 7k60FXE

RECEIVER

Parámetro	Especificación
Frequency Stability	-20 °C +60 °C +25 °C ±0.5 PPM*
Analog Sensitivity	0.3 μV (12 dB SINAD)
Analog Sensitivity — Type	0.22 μV / -120 dBm (Type)
Digital Sensitivity	0.22 μV / -120 dBm
Digital Sensitivity	0.35 μV / -116 dBm
Adjacent Channel Selectivity	60 dB @ 12.5 kHz / 70 dB @ 25 kHz
Audio Distortion	≤3%
Spurious Response	-57 dBm < 1 GHz / -47 dBm > 1 GHz
